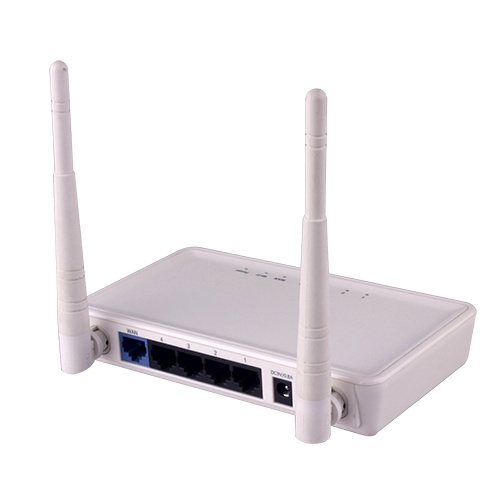

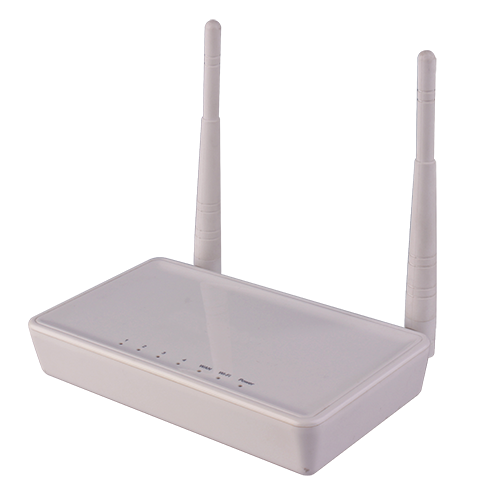

300Mbps Wireless Router

BR300F

Features
• N300 : 300 Mbps WiFi N bands
• Share one single IP with multiple users
• Create an isolated guest network
• One touch WiFi connection with the WPS button
• All Fast Ethernet wired ports
  • Description
  • Specifications





Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

Frequency2.4 GHz: FCC: 2.412 ¨C 2.472; ETSI: 2.412 ¨C 2.472 GHz
Hardware Interface

4 x 10/100Mbps LAN ports

1 x 10/100Mbps WAN port

WPS button

Reset button

LED indicators

Encryption

Wireless encryption up to WPA2

Firewall: NAT, ALG, Port Trigger, Virtual Server, Special Applications, DMZ Host, PPTP / L2TP / IPsec VPN Passthrough

Parental (Access) Controls: MAC, URL, IP Filter

Special Features

QoS Management

IPv6 support

WDS support

4 multiple SSID per band

Dynamic DNS support for dyn.com and no-ip.com

Multi-Language interface: English, Chinese, Korean, Russian, others

Antenna Gain2.4 GHz: 5 dBi (max.) external
Wireless Output Power/Receiving Sensitivity

802.11b: FCC: 20 dBm, CE: 16.5 dBm (max.) / -83 dBm (typical) @ 11 Mbps

802.11g: FCC: 20 dBm, CE: 16.5 dBm (max.) / -65 dBm (typical) @ 54 Mbps

802.11n (2.4 GHz): FCC: 17 dBm, CE: 13.5 dBm (max.) / -61 dBm (typical) @ 300 Mbps

Power

Input: 100 ¨C 240 V AC, 50 - 60 Hz, 0.8 A

Output: 9 V DC, 0.8 A

Operating Temperature0 - 40¡ã C (32 - 104¡ã F)
Operating HumidityMax. 90% non-condensing
