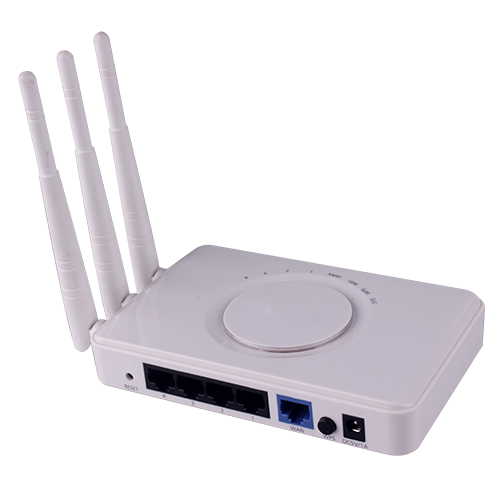

AC750 Dual Band Wireless Router

BR750G

Features
• AC750 : 433 Mbps WiFi AC + 300 Mbps WiFi N bands
• Share one single IP with multiple users
• High speed USB 2.0 share ports
• Create an isolated guest network
• One touch WiFi connection with the WPS button
• All Gigabit wired ports
• High power amplifiers extend wireless coverage
  • Description
  • Specifications



Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

IEEE 802.11ac

Frequency

5 GHz: FCC: 5.180 每 5.240 + 5.745 每 5.825; ETSI: 5.180 每 5.725 GHz

2.4 GHz: FCC: 2.412 每 2.472; ETSI: 2.412 每 2.472 GHz

Hardware Interface

4 x Gigabit LAN ports

1 x Gigabit WAN port

1 x USB 2.0 (Storage FTP, Samba)

WPS button

Reset button

LED indicators

Encryption

Wireless encryption up to WPA2

Firewall: NAT, ALG, Port Trigger, Virtual Server, Special Applications, DMZ Host, PPTP / L2TP / IPsec VPN Passthrough

Parental (Access) Controls: MAC, URL, IP Filter

Special Features

QoS Management

IPv6 support

WDS support

4 multiple SSID per band

Dynamic DNS support for dyn.com and no-ip.com

Samba/FTP server support

Multi-Language interface: English, Chinese, Korean, Russian, others

Antenna Gain

5 GHz: 5 dBi (max.) external

2.4 GHz: 5 dBi (max.) external

Wireless Output Power/Receiving Sensitivity

802.11a: FCC: 22 dBm, CE: 18 dBm (Max)/-68 dBm (typical) @ 54 Mbps

802.11b: 19 dBm (Max) /-84 dBm (typical) @ 11 Mbps

802.11g: 18 dBm (Max) /-72 dBm (typical) @ 54 Mbps

802.11n: FCC: 18 dBm (Max) /-68 dBm (typical) @ 450 Mbps 2.4 GHz

802.11n: FCC: 22 dBm, CE: 18 dBm (Max)/-68 dBm (typical) @ 450 Mbps 5 GHz

802.11ac: FCC: 23 dBm, CE: 19 dBm (Max)/-55 dBm (typical) @ 1.3 Gbps

Power

Input: 100 每 240 V AC, 50 - 60 Hz, 0.8 A

Output: 12 V DC, 1 A

Operating Temperature0 - 40∼ C (32 - 104∼ F)
Operating HumidityMax. 90% non-condensing
