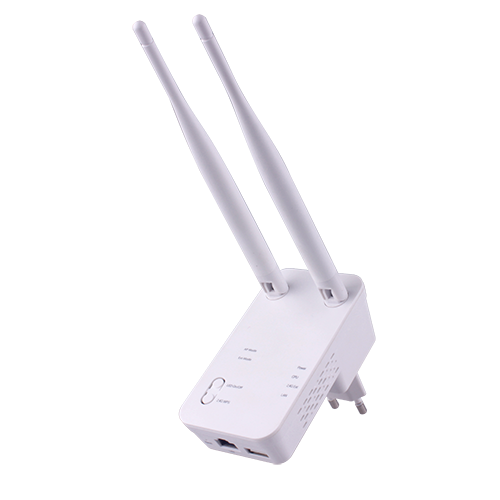

The Repeater is Mainly used for providing free WiFi service in big area such as factory, community, street or etc. The AP/Router can take an existing 2.4GHz wireless signal, repeat and extend it to a longer range where it is too far away for the router or access point to reach. The AP/Router simultaneously supports 2.4G wireless network connection, and it can supports 2.4G transmission speeds of up to 300Mbps. It has 2 x External Antennas providing even better wireless performance, transmission rates, stability technology automatically avoids channel conflicts using its channel selection feature.
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3az IEEE 802.11b IEEE 802.11g IEEE 802.11n |
| Device Interfaces | Gigabit Ethernet port WPS Button AP / Extender LED indicators Power plug - A: North America Type B (NEMA 5¨C15) - EU: Euro Type C (CEE 7/16) - UK: United Kingdom Type G (BS 1363) |
| Operation Modes | Range Extender (Repeater) Access Point |
| Special Features | QoS Management IPv6 support WDS support 4 multiple SSID per band Dynamic DNS support for dyn.com and no-ip.com Multi-Language interface: English, Chinese, Korean, Russian, others |
| Access Control | Wireless encryption: WEP, WPA / WPA2-PSK, WPA / WPA2-RADIUS MAC filter |
| Frequency | 2.4 GHz: FCC: 2.412 ¨C 2.472; ETSI: 2.412 ¨C 2.472 GHz |
| Antenna Gain | 2.4 GHz: 5 dBi (max.) external |
| Wireless Output Power (EIRP) / Receiving Sensitivity | 802.11b: FCC: 20 dBm (typical), CE: 20 dBm (typical) / -83 dBm (typical) @ 11 Mbps 802.11g: FCC: 27 dBm (typical), CE: 20 dBm (typical) / -65 dBm (typical) @ 54 Mbps 802.11n: FCC: 27 dBm (typical), CE: 20 dBm (typical) / -61 dBm (typical) @ 300 Mbps |
| Power | Input: 100 - 240 V AC, 50/60 Hz |
| Operating Temperature | 0 - 40 ¡ãC (32 ¨C 104 ¡ãF) |
| Operating Humidity | Max. 95% non-condensing |
